Germany

有限会社ナックス  NACS LTD

ナックス は ドイツの Weiss の日本総代理店です。

お問合わせ先:代理店:

有限会社ナックス

669-1545

兵庫県三田市挟間が丘2-16-27

電話0795634146

FAX 079(5631404

Email: infonacs@nacsnet.co.jp

 担当: 奥村文夫



NACS LTD

2-16-27, HAZAMAGAOKA,SANDA,HYOGO,669-1545, JAPAN

Email: infonacs@nacsnet.co.jp

Temperature sensor with tranmit device
Temperature: Pt 100 (2-, 3-, 4-wire)
Temperature sensor with tranmit device
Temperature: Pt 100 (2-, 3-, 4-wire)
Temperature sensor with tranmit device
Temperature: Pt 100 (2-, 3-, 4-wire)
Accuracy: class A - B - 1/2 DIN
Measuring range: -40...+80 °C
Humidity: 0...100 %rF
Output humidity: 4...20 mA / 0...10 V / 2...10 V
Connection: via screwed cable gland to terminal screws
Enclosure: cast aluminium
Optional: transmitter 4...20 mA / 2...10 V / 0...10 V
Optional: Indicator (Input: 4...20 mA)
Müller Industrie-Elektronik GmbHClick to enlarge image dr-adlm_g.jpg

Digital strain gauge amplifier

type: DR-ADLM | ID: BD

technical features

Input Strain gauge: up to 2 full bridges, 0(4)...20 mA, 0...10 V

Input sensitivity: 0,1...5 mV/V

Analog output: 4...20 mA / 0...10 V

Voltage supply: 24 VDC

Resolution: 12 / 14 / 15 / 16 bit

Combined error: 0,2% of end scale value y: interface

Degree of protection: IP20

Measuring element: RTD Pt 100

Potting: electronics completely potted

Material: process connection stainless steel 1.4571

Process connection: 1/4", 3/8", 1/2", 3/4", 1", 1/4" NPT, 3/8" NPT, 1/2" NPT

Output: 4...20 mA HART

Limit value contacts: 2 electronically

Configuration: with keys/software

Connection: M12, Super Seal, Deutsch, Bayonet, valve, cable

Protection: at least degree IP65

Temperature sensor with transmit device

Temperature: Pt 100 (2-, 3-, 4-wire)

Accuracy: class A - B - 1/2 DIN

Measuring range: -40...+80 °C

Humidity: 0...100 %rF

Output humidity: 4...20 mA / 0...10 V / 2...10 V

Connection: via screwed cable gland to terminal screws

Enclosure: cast aluminium

Optional: transmitter 4...20 mA / 2...10 V / 0...10 V

Optional: Indicator (Input: 4...20 mA)

Channel Humidity sensor

Range humidity: 0...100% relative humudity

Range temperature: 0...+40°C/+50°C/+100°C, -10...+90°C, -30...+60°C

Operating range humidity: +10...+95% relative humidity

Operating range temperature: -30...+80°C

Medium: unpressurized,non aggressive, non condensing air

Output: 0...20mA or 0...10V (3-/4-wire) / 4...20mA (2-wire)

Supply voltage: 15...30VDC or 24VAC

Accuracy: +/- 3,5% rH, +/- 0,8°K

Click to enlarge image md-iws_g.jpg

Modular intelligent Weather station

Reliable detection of all aqueous precipitation

1 switching contact "heating on"

Serial interface, galvanically insulated

1 input rail temperature (4...20 mA)

Quadruple analogue output optionally for air temperature, relative air, humidity, intensity of precipitation and air pressure

Intelligent self adjustment in case of soiling

Internal heating effective down to -30°C

Optional mounting device, galvanized

Optional display in cover of case.

Silo load cell
type: SILO | ID: SI
technical features
Ranges from 1 t up to 75 t
digital strain guage mueller

Silo load cell

type: SILO | ID: SI

technical features

Ranges from 1 t up to 75 t

Output 2mV/V

Supply voltage 10VDC

Accuracy below 0,05% of and scale value

Degree of protection IP68

Insensitive to off axis loads

Highly accurate and reliable

optionally made of stainless steel

ストレインゲージ

Tension load cell

Standard capacity from 100kg (250lb) to 5000kg (20klb)

S-shaped tension load cell for simple mounting

High alloy tool steel, nickel plated or stainless steel design

Particularly suitable for parallel connection

Optimal cost-performance ratio

Degree of protection IP66

Accuracy 0,02% end of scale value

Annular load cell

Nominal load: 10 kN up to 200 kN

Output: strain gauge full bridge, 1 mV/V

Voltage supply: 10 VDC

Accuracy: +/- 0,5% of range

Temperature range: -20...+80 °C

Safe overload: 150% of nominal range

Material: stainless steel ARMCO 17-4PH

Protection: IP66

Connection: 3 m cable

Rail temperature sensor

Measurement element: Pt100, 4-wire, Class A

Resolution: 0,1 °C

Configuration: with PC, MS - Windows 3.11 or higher

Operating surface "DTM - Control"

Analog output 4...20 mA, invertable, 2-wire technics

Temperature linear output

Galvanic insulation

Special steel case completely potted

Bending beam load cel

lRated load: 5...500kg

Output: 2mV/V

Supply voltage: 10VDC

Accuracy: +/- 0,02% of end scale value

Degree of protection: IP67

Material: alloy steel / stainless steel

Connection: 3 m cable, 4-wire

Bolt on strain sensing

Full load output: 1 mV/V / 20 mV/V

Zero load output : +/-5% of range

Supply: 10 VDC (bridge)

Accuracy: 0,25% of range

Protection: IP65

Connection: cable, 3m, 4-wire shielded

Safe overload: 200% of nominal load

Operation temperature: -30...+70 °C

Level sensor with float

Cable resistance thermometer with sleeve socket and GL –approval

Sensor RTD: 1x PT100 / 1x Pt1000 / 2x Pt100 / 2x Pt1000 (2-, 3-, 4-wire)

Accuracy: class A / class B / B1/2DIN / B1/3DIN / B1/10DIN

Protective sheathing: stainless steel 1.4571, diameter: 4 / 5 / 6 mm

Nominal length: 25 (d = 4) / 45 (d=4, d = 5) / 41 (d = 6) / 65 (d = 6) mm

Option: other length

Cable length: 2000 mm / Option: other length

Cable: PVC-PVC / PTFE-silicone / PTFE-PTFE / PTFE-braiding-PTFE, Fibre glass-stainless steel braiding

Antikink: heat shrinkable sleeve / spring / without

Connection: open ends

Level sensor with float  transmitter

Measuring element: float

Potting: electronics completely potted

Material: in contact with medium stainless steel 1.4571

Process connection: 1", 1,5", 1"NPT

Output: 4...20 mA HART

Limit value contacts: 2 electronically

Configuration: with keys/software

Connection: M12, Super Seal, Deutsch, Bayonet, valve, cable

Protection: at least degree IP65

Cable resistance thermometer with sleeve socket and GL –approval
Rail temperature sensor
Measurement element: Pt100, 4-wire, Class A
Tension load cell
Standard capacity from 100kg (250lb) to 5000kg (20klb)
S-shaped tension load cell for simple mounting
気象環境測定装置Force transducer for serapid linklift series
type: SER-LO | ID: SL
technical features
Ranges: 20 / 30 / 70 / 100 kN
Output: 0,5...1 mV/V
Measuring element: RTD Pt 100
Potting: electronics completely potted
Material: process connection stainless steel 1.4571
ひずみ計Bolt on strain sensing
Full load output: 1 mV/V / 20 mV/V
Zero load output : +/-5% of range
Supply: 10 VDC (bridge)
Accuracy: 0,25% of range
Protection: IP65
Bolt on strain sensing
Full load output: 1 mV/V / 20 mV/V
Zero load output : +/-5% of range
Supply: 10 VDC (bridge)
Accuracy: 0,25% of range
Protection: IP65
テキスト ボックス: Müller社は Matthias Müller により1992に設立、ドイツの自社工場にて産業用の各種センサー、トランスミッター、温度センサー、レベルセンサー、流量計、差圧計、伝送器、振動計、伝導率計、ストレインゲージ、(ロードセル、変位計、)を製造しています。
現在では 80名の従業員で 、通信伝送装置を組み込んだ 特徴あるセンサーを製造しています。
Production and quality: „Made in Germany“

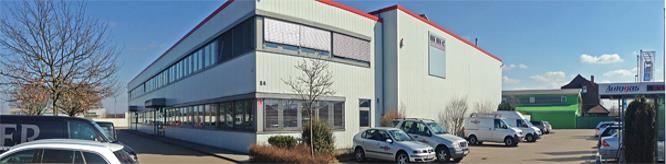

ハノバー近郊の、牧歌的な Neustadt am Rübenberge に本社工場がります。 特にプロセス測定機器、センサー、温度、フォ−ス、圧力等の 計測技術に関する、固有技術を有しています。 さらに計測表示、計測機器の評価など幅広い計測機器の分野で製品を開発しています。よりすぐられた部品をもとに、 先端技術の高度な管理を期待する高レベルの経営者の皆様に最高品質の計測技術、高精度の測定結果をご提案するという企業哲学が生かされています。
各種センサー、トランスミッター、温度センサー、レベルセンサー、流量計、差圧計、伝送器、振動計、伝導率計、ストレインゲージ、(ロードセル、変位計、

Müller社 Matthias Müller
nacs ltd english page

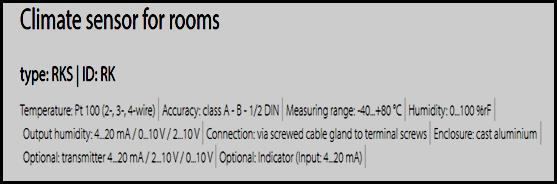

Climate sensor for rooms
